Engine Repair
Fel-Pro® offers comprehensive coverage of virtually every engine repair opportunity, from complete rebuilds to the replacement of a single gasket or seal. In addition, Fel-Pro offers the best gasket material and design for each application to ensure a perfect seal the first time, every time.
Engine Repair Technologies:
• 0007PermaTorqueMLS® – These head
gaskets provide the correct design for MLS-equipped vehicles and feature a unique aftermarket coating that accommodates less-than-perfect surface finishes.
• 0007PermaTorque® – The industry
standard for no-retorque head gaskets features premium coatings, facings and combustion armors.
• 0007PermaTorqueSD® – Severe-duty
head gaskets engineered for extra strength under punishing conditions.
I
Understanding Torque-to-Yield Head Bolts
T-T-Y head bolts are particularly common on engines using aluminum heads and/or multi-layer steel head gaskets. These bolts are engineered to stretch within a controlled “yield zone”. Once they reach this zone, they spring back to provide a precise level of clamping force over the entire area of the gasket. It’s important to carefully follow the manufacturer’s tightening specification. Once T-T-Y bolts are stretched beyond their yield zone, they become useless. Typically, T-T-Y bolts are torqued to a specified limit, then again with an additional partial turn to reach the bolt’s yield zone. It is recommend to never reuse a T-T-Y head bolt. Chances are too great that it has already exceeded its elasticity barrier and won’t spring back to properly seal the engine.
II
Importance of Proper Torque
When a head gasket is installed between the cylinder head and engine block, tightening the head bolts compresses the gasket slightly, allowing the soft facing material on the gasket to conform to the small irregularities on the head and block deck surfaces. This allows the gasket to “cold seal” so it won’t leak coolant before the engine is started. The head gasket’s ability to achieve a positive cold seal, as well as to maintain a long-lasting, leak-free seal depends on two things: its own ability to retain torque over time (which depends on the design of the gasket and the materials used in its construction) and the clamping force applied by the head bolts. PermaTorque® head gaskets are made with top-quality materials and designed to remain resilient so they retain torque, so no retorquing is necessary. (Some competitive head gaskets alleged to be “no retorque” can lose as much as 50 to 60% of their original torque after only 100 hours of service.)
Competitive Head Gasket:
PermaTorque® Head Gasket:
III
Head Bolts
Previously installed Torque-to-Yield head bolts should never be reused. Damage to engine and cylinder heads can occur. • 0007Fel-Pro® Head Bolts provide the most consistent clamping force possible.
• 0007Properly torque for best results.
Torque-to-Angle Indicator (Part Number TRQ-1)
With T-T-Y head bolts, the Torque-To-Angle Indicator (Part Number TRQ-1) should be used in conjunction with a torque wrench to achieve proper bolt loading. While the head bolts are being torqued to the specified value, the technician can use the TRQ-1 tool to accurately measure the degrees of additional rotation required. This eliminates guesswork and assures more consistent results.
Torque-To-Angle Indicator (Part Number TRQ-1)
IV
Other Products from Fel-Pro® that aid in installation Crankshaft Repair Sleeves Repairs crankshaft grooves at the rear main bearing seal area.
Sleeve ’N’ Seal® Repairs harmonic balancer grooves at the timing cover seal area.
Oil Pan SnapUps® SnapUps® are designed to hold up the oil pan and gaskets, and allow for quick, convenient bolt installation. SnapUps are included with premium PermaDryPlus® oil pan gasket sets.
Valve Cover Load Spreaders® Load Spreaders distribute the clamping force more evenly on the valve cover flange. This results in a better seal between the valve cover and the head.
Cylinder Head Dowel Pins Cylinder head alignment dowel pins assure proper gasket and casting alignment for an accurate seal and trouble-free engine operation.
Exhaust Flange Bolts/Springs Exhaust Flange Bolt & Spring Kits ensure a tight exhaust flange seal at the pipe joint.
V

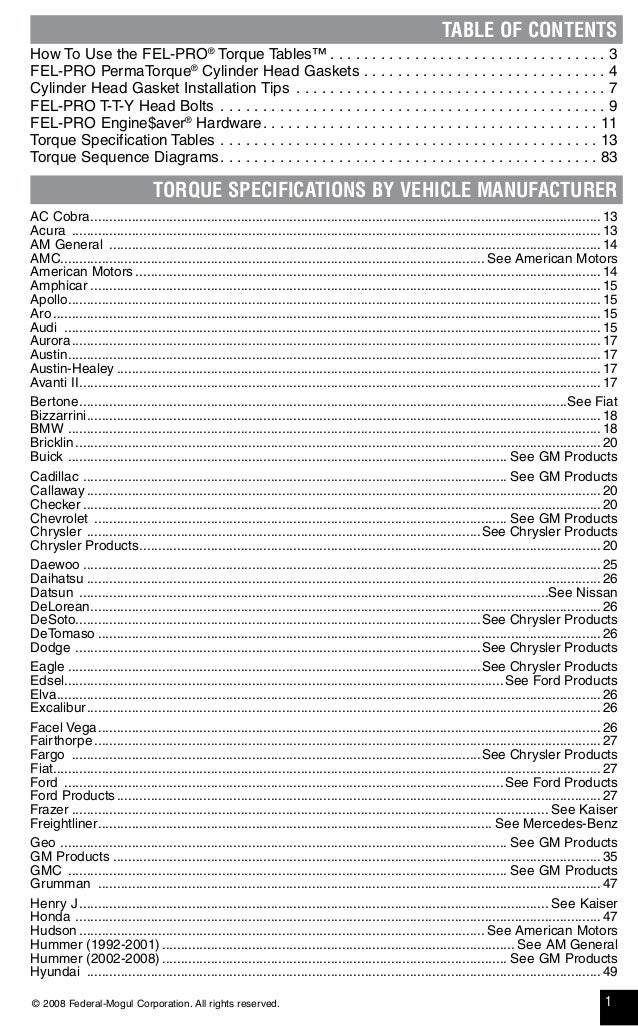

Table of Contents How To Use the FEL-PRO® Torque Tables™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 FEL-PRO PermaTorque® Cylinder Head Gaskets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Cylinder Head Gasket Installation Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 FEL-PRO T-T-Y Head Bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 FEL-PRO Engine$aver® Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Torque Specification Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Torque Sequence Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Torque specifications by Vehicle manufacturer AC Cobra......................................................................................................................................... 13 Acura .............................................................................................................................................. 13 AM General .................................................................................................................................... 14 AMC.................................................................................................................. See American Motors American Motors............................................................................................................................. 14 Amphicar......................................................................................................................................... 15 Apollo............................................................................................................................................... 15 Aro................................................................................................................................................... 15 Audi ................................................................................................................................................ 15 Aurora.............................................................................................................................................. 17 Austin............................................................................................................................................... 17 Austin-Healey.................................................................................................................................. 17 Avanti II............................................................................................................................................ 17 Bertone...................................................................................................................................See Fiat Bizzarrini.......................................................................................................................................... 18 BMW ............................................................................................................................................... 18 Bricklin............................................................................................................................................. 20 Buick ...................................................................................................................... See GM Products Cadillac .................................................................................................................. See GM Products Callaway.......................................................................................................................................... 20 Checker........................................................................................................................................... 20 Chevrolet ............................................................................................................... See GM Products Chrysler ..........................................................................................................See Chrysler Products Chrysler Products............................................................................................................................ 20 Daewoo........................................................................................................................................... 25 Daihatsu.......................................................................................................................................... 26 Datsun ..............................................................................................................................See Nissan DeLorean......................................................................................................................................... 26 DeSoto.............................................................................................................See Chrysler Products DeTomaso....................................................................................................................................... 26 Dodge .............................................................................................................See Chrysler Products Eagle...............................................................................................................See Chrysler Products Edsel...................................................................................................................... See Ford Products Elva.................................................................................................................................................. 26 Excalibur.......................................................................................................................................... 26 Facel Vega....................................................................................................................................... 26 Fairthorpe........................................................................................................................................ 27 Fargo ..............................................................................................................See Chrysler Products Fiat................................................................................................................................................... 27 Ford ...................................................................................................................... See Ford Products Ford Products.................................................................................................................................. 27 Frazer................................................................................................................................ See Kaiser Freightliner.......................................................................................................... See Mercedes-Benz Geo ........................................................................................................................ See GM Products GM Products................................................................................................................................... 35 GMC ...................................................................................................................... See GM Products Grumman ....................................................................................................................................... 47 Henry J.............................................................................................................................. See Kaiser Honda ............................................................................................................................................. 47 Hudson............................................................................................................. See American Motors Hummer (1992-2001)............................................................................................... See AM General Hummer (2002-2008)............................................................................................. See GM Products Hyundai .......................................................................................................................................... 49 © 2008 Federal-Mogul Corporation. All rights reserved.
1
Torque specifications by vehicle manufacturer Infiniti .............................................................................................................................................. 51 International .................................................................................................................................... 51 Iso.................................................................................................................................................... 52 Isuzu ............................................................................................................................................... 52 Jaguar.............................................................................................................................................. 53 Jeep................................................................................................................................................. 53 Jensen............................................................................................................................................. 55 Kaiser.............................................................................................................................................. 55 Kia................................................................................................................................................... 55 LaForza........................................................................................................................................... 56 Lancia.....................................................................................................................................See Fiat Land Rover...................................................................................................................................... 56 Lexus .............................................................................................................................................. 56 Lincoln .................................................................................................................. See Ford Products Lotus................................................................................................................................................ 57 Marcos............................................................................................................................................. 57 Mazda ............................................................................................................................................. 58 Mercedes-Benz............................................................................................................................... 60 Mercury ................................................................................................................ See Ford Products Merkur................................................................................................................... See Ford Products Metropolitan..................................................................................................................................... 63 MG................................................................................................................................................... 63 Mini.................................................................................................................................................. 63 Mitsubishi ....................................................................................................................................... 63 Morgan............................................................................................................................................ 65 Morris.............................................................................................................................................. 65 Nash................................................................................................................. See American Motors Navistar ...................................................................................................................See International Nissan ............................................................................................................................................ 65 Oldsmobile ............................................................................................................ See GM Products Opel................................................................................................................................................. 68 Packard............................................................................................................................................ 68 Panoz.............................................................................................................................................. 68 Peugeot........................................................................................................................................... 68 Pinninfarina ...........................................................................................................................See Fiat Plymouth ........................................................................................................See Chrysler Products Pontiac ................................................................................................................... See GM Products Porsche........................................................................................................................................... 69 Puma............................................................................................................................................... 69 Rambler............................................................................................................ See American Motors Renault............................................................................................................................................ 69 Riley................................................................................................................................................. 70 Rover............................................................................................................................................... 70 Saab................................................................................................................................................ 70 Saturn ............................................................................................................................................. 71 Scion .............................................................................................................................................. 72 Shelby.............................................................................................................................................. 72 Sterling............................................................................................................................................ 72 Studebaker ..................................................................................................................................... 72 Subaru ............................................................................................................................................ 73 Sunbeam......................................................................................................................................... 74 Suzuki ............................................................................................................................................. 74 Toyota ............................................................................................................................................. 75 Triumph............................................................................................................................................ 78 Turner.............................................................................................................................................. 78 TVR................................................................................................................................................. 78 Volkswagen...................................................................................................................................... 78 Volvo ............................................................................................................................................... 80 Willys ...................................................................................................................................See Jeep Workhorse....................................................................................................................................... 82 Yugo................................................................................................................................................ 82 The torque specifications and sequences listed in this publication are considered accurate and reliable at the time of publication. However, since engine manufacturers may revise their specifications, FEL-PRO engineers
2 suggest the installer consult the O.E. manufacturer for the latest information.
how to use the fel-pro® torque tables™ 1. Locate the vehicle manufacturer listing in the torque specification tables. All manufacturers are listed in alphabetical order. To save space in the listings, all Chrysler Products vehicles, all Ford Products vehicles, and all General Motors Products vehicles are each grouped together in a single section. Check the Table of Contents at the front of the book to find where each vehicle manufacturer is located. Each manufacturer section includes passenger cars, minivans, SUV’s, light-duty and medium-duty trucks for that nameplate. 2. Within each vehicle manufacturer section, engines are arranged by number of cylinders (smallest to largest), then by engine size (CID or CC: smallest to largest), then by model years (newest year first). Check VIN codes carefully on domestic manufacturers, and engine codes carefully on imported manufacturers, to assure selecting the correct torquing information. 3. Special footnote symbols are included to show if a FEL-PRO PermaTorque® head gasket (●) or FEL-PRO head bolt set (❍) is available for that engine application. 4. Locate the specific engine desired. Correct torque specifications are shown in foot-pounds in bold type. ENGINE
YEARS
FT.-LBS.
TORQ. HEAD BOLT SET SEQ. PART NUMBER
FORD PRODUCTS 6 & V6 (CONT.) 183 OHV (3.0L) 12 Valve Ford
2008-99 Truck
●❍
183 OHV (3.0L) 12 Valve Ford
1998-91 Truck
●❍
183 OHV (3.0L) 12 Valve Ford
1990-86 Truck
●❍
1st 36-39, 2nd loosen one turn, 3rd 20-24, 4th turn 85-95 degrees, 5th turn 85-95 degrees 1st 59, 2nd loosen one turn, 3rd 37, 4th 68 1st 33-41, 2nd 63-73
141
ES 72136 ES 72174
141
ES 72136 ES 72174 ES 72136
141
Torque specifications are shown either as an exact figure, or a specific range. Follow any special instructions or multi-step directions carefully to assure correct final torque. There may be different specifications for different size bolts, bolts in different positions, tightening bolts in several stages, or a cold engine vs. a warm engine. For example, in some cases bolts are first torqued to the figure for a cold engine and retorqued to the figure for a warm/hot engine. Remember that retorquing is not required when installing a FEL-PRO PermaTorque head gasket.
For torque-to-yield applications, head bolts are torqued additional partial turns (shown as “degrees” in the tables) after reaching a specified torque in foot-pounds. Please see the following Installation Tips for more information on torque-to-yield bolts.
5. The “Torque Sequence” column shows which diagram to use as the specific bolt torquing sequence for your engine. All diagrams can be found in numerical sequence at the back of this publication.
3
fel-pro® permatorque® cylinder head gaskets
fel-pro® permatorque® cylinder head gaskets
The FEL-PRO PermaTorque/Blue Stripe® and PermaTorque/Printoseal® cylinder head gaskets do not need retorquing. They combine the proper amount of compressibility with torque-retaining materials for a long-lasting seal. FEL-PRO cylinder head gaskets use a variety of gasket constructions and materials, carefully chosen by our engineers for each specific engine application and thoroughly tested. All FEL-PRO PermaTorque cylinder head gaskets consist of four basic parts – the core, the facing material, the coating, and the armor. Other special enhancements, such as elastomeric sealing beads, may be added to improve sealing even further.
Another popular PermaTorque/Blue Stripe design uses a clinched steel core construction, combined with either expanded graphite or dense composite facing material. The “S” shaped protrusions of the clinched core allow more uniform loading of the gasket than competitive designs. High-density expanded graphite is used for high-temperature applications where required. The composite facing material uses rubber/fiber design that is densified during the production process. This material is dense enough to help maintain torque, yet compressible enough to conform to minor surface irregularities.
anti-friction coating
core
facing
coating
armor
tinplate or stainless steel armor
reliability
Coatings can be either PTFE rubber or silicone-based. They help seal minor surface imperfections, resist sticking, and help the gasket resist the shearing action that occurs in bi-metal engines. Aluminum cylinder heads and cast iron engine blocks expand and contract at different rates during engine heating/cooling cycles. The anti-friction coatings used on PermaTorque head gaskets allow both the head and block to “slip” over the gasket surface and still maintain a good seal.
dense composite facing material eliminates retorquing clinched steel core
Formed metal armors are added to protect the gasket body at cylinder openings. Each armor is precision stamped and then formed to the gasket body. Engineers specify different armor materials, ranging from tinplate to stainless steel, depending on the specific engine application. The most common PermaTorque/Blue Stripe design uses a solid steel core with rubber/ fiber facing material. The solid steel core minimizes torque loss, while the soft facing conforms to seal minor surface irregularities.
PermaTorque/Blue Stripe Clinched Core Design When the engine requires additional sealability, Printoseal® elastomeric sealing beads are applied around critical openings such as coolant and oil ports, to prevent oil and coolant leakage. On many current lightweight engines, the beads also help seal aluminum castings that have uneven clamping force across the gasket surface.
anti-friction coating
tinplate or stainless steel armor rubber/fiber facing material
solid steel core eliminates retorquing
tinplate or stainless steel armor ® Printoseal elastomeric sealing bead rubber/fiber facing material solid steel core eliminates retorquing
PermaTorque/Printoseal Solid Core Design
PermaTorque/Blue Stripe Solid Core Design
4
5
fel-pro® permatorque® cylinder head gaskets The latest development in head gasket technology is the multi-layer steel (MLS) design. At first glance, these gaskets look like the old-style embossed steel shim gaskets, but they are radically different. First, a thin rubber coating is bonded to the stainless steel shim and, as required, multiple layers (up to five) of this rubber-coated steel shim are assembled into a single gasket. The high-temperature rubber coating provides excellent fluid sealability across the outer faces and between the individual layers, while also sealing minor head and block surface imperfections. MLS head gaskets provide the ultimate in torque retention and supply extra strength to support current lightweight aluminum casting designs. They are specified on most current domestic and imported engines in production.
cylinder head gasket installation tips Remove Cylinder Heads Carefully Loosen the head bolts in stages, in the reverse order of the tightening sequence. On engines with aluminum cylinder heads, remove the head only after the engine has cooled completely and reverse EXACTLY the recommended torquing procedure. Failure to do so may result in head warpage.
Never Reuse Head Gaskets When a new head gasket is installed, it conforms to the microscopic surface irregularities of the cylinder head and engine block. The gasket material is permanently compressed in that position. If you reuse the gasket, it is impossible to refit it in the exact same position and it will not have the “life” to readjust itself, so gasket failure may result.
Clean Mating Surfaces Thoroughly clean the cylinder head, engine block, head bolts, and bolt holes. A dirty bolt can alter torque readings by as much as 20 foot-pounds, and can form pockets in the gasket allowing leakage and eventual gasket failure.
Check for Warpage and Distortion Traditional original equipment manufacturer (OEM) type MLS head gaskets don’t easily conform to surface irregularities, and require an incredibly smooth surface finish to provide a satisfactory seal. When the castings are new and the finish is fresh, most OEM-style MLS gaskets work quite well. But when the castings are old or resurfaced with a less than perfect finish, leaks usually result. To seal under these adverse conditions, FEL-PRO® engineers have developed the exclusive PermaTorqueMLS® design. These newly redesigned MLS gaskets have many unique features that allow them to seal better than other MLS gaskets on the market today:
• 0007Full-hard stainless steel maintains its shape despite thermal expansion, and resists the scrubbing action between head and block
• 0007Precision-engineered embossed sealing beads placed at all critical sealing areas to eliminate leak paths
• 0007An exclusive extra-strong “stopper” layer incorporated to provide a superior primary combustion seal
• 0007Special rubber coating specifically formulated for the aftermarket repair environment, which is more forgiving of surface finish requirements
Check for warpage of both head and block sealing surfaces with a straightedge and a feeler gauge. Out-of-flat along the length should not be more than 0.003' for three-cylinder applications, 0.004' for four-cylinder applications, and 0.006' for six-cylinder applications. Across the width should never exceed 0.002' out-of-flat. These are combined measurements for both the head and block together, and should not exceed the maximum amounts shown. There should be no sudden irregularities exceeding .001' and a maximum out-of-flat of + .001' in any 3' diameter should not be exceeded. When necessary, machine surfaces to return them to flat.
Check Head and Block Finishes Surface finish is critical for a good seal. FEL-PRO® engineers recommend a micro inch surface finish between 60 to 100 Ra (400 to 800 Rz) for cast iron heads and blocks, 50 to 60 Ra (200 to 600 Rz) for aluminum heads and blocks, and 10 to 30 Ra maximum (500 Rz maximum) for multi-layered steel (MLS) applications. Check the finishes with a profilometer or another type of surface finish comparator. Check for a preferred waviness height of .0004'/.0005' with a waviness peak spacing of .100' (these values are usually associated with milling machines). Always consult your manufacturer’s service manual for surface finish requirements.
Remeber that although PermaTorque MLS head gaskets are more forgiving than other designs, the finish on both the head and block must be flatter and smoother than what has been traditionally required for composite-type gaskets. FEL-PRO® engineers determine which PermaTorque construction provides the best sealing for each individual engine design. Look for the “PT” suffix on the FEL-PRO part number for PermaTorque head gaskets, the most reliable no-retorque designs available on the market today.
6
7
7
9
5 1 3 tips cylinder head gasket installation
Use A Non-Hardening Gasket 6 8 Sealer
2
4
FEL-PRO® T-T-Y HEAD BOLTS Torque-to-Yield Head Bolts
10
Sealers are NOT required on FEL-PRO PermaTorque® head gaskets. However, embossed steel shim, copper-faced, or steel-faced gaskets should be coated with a non-hardening automotive gasket sealer as a supplemental seal. Lightly coat bolt threads and the underside of the bolt heads with EP grease or similar 2 4 bolt 5threads should be coated with lubricant. When they enter the3water jackets of1an engine, a non-hardening automotive sealer to prevent leakage. Refer to the manufacturer’s service manual or examine the engine where the9 bolt holes 8 to determine 7 6 10 lead.
Watch Bolt Lengths and Sizes Head bolts on some engines may vary in length and size, and it is important that they be replaced in their original location. Either mark the 6bolts by position, or place them on a 9 3 1 8 bench in the order you remove them. 7
Use A Torque Wrench
5
2
4
10
Torque-to-yield is a method used by most current engine manufacturers to tighten head bolts. The head bolts are torqued to their yield point, which may permanently stretch the bolts. This results in a more even clamping force over the entire area of the gasket. Bolts should first be tightened to a specified torque (measured in foot-pounds), and then tightened an additional partial turn (measured in degrees) to the bolt yield point. The inexpensive FEL-PRO® Torque-to-Angle Indicator (part number TRQ-1) will help you accurately measure the required partial turn in degrees. Because the head bolts may have stretched, the engine manufacturer may recommend against reusing them. Consult the OEM manual on head bolt reuse. Since you may not know how many times a T-T-Y bolt has been removed and reinstalled, FEL-PRO engineers suggest that it is always a good idea to use new bolts. FEL-PRO head bolt sets are available for many domestic and imported engines. The Torque Tables™ indicate which engines have bolt sets offered in the FEL-PRO product line. ENGINE
Uneven torque can cause block distortion and head warpage, resulting in coolant or combustion leaks. Use a good torque wrench, FRONT properly calibrated, and follow exact specifications for the proper torque. The basic tightening procedure is to first snug up 17 and then complete with the final torque specified. bolts, then tighten in stages,
YEARS
FT.-LBS.
FORD PRODUCTS 6 & V6 (CONT.) 232 OHV (3.8L) 12 Valve Ford
2003-96 Truck
●❍
232 OHV (3.8L) 12 Valve Ford
1995 Truck
●❍
232 OHV (3.8L) 12 Valve Ford
2004-98 Car
●❍
232 OHV (3.8L) 12 Valve Ford
1997-96 Car
●❍
Warm Engine and Retorque Head
232 OHV (3.8L) 12 Valve Ford
1995-94 Car
●❍
Run the engine to normal operating temperature after torquing head bolts. Heat expansion and contraction can radically change the torque readings. Retorque all head bolts to the correct settings while the engine is still warm. If working with aluminum components, let the engine cool completely first. Remember that FEL-PRO® PermaTorque® designs do NOT require retorquing.
232 OHV (3.8L) 12 Valve Ford
1993-91 Car
●❍
232 OHV (3.8L) 12 Valve Ford
1990-84 Car
●❍
4
12
16
13
5
8
9
1
18
Follow Torquing Sequences 10to follow19 Each manufacturer has an15approved7torquing 2sequence for each engine, to insure
the best possible seal and eliminate chances of distortion and20warpage. In general, the 11 3 14 6 sequence starts at the center and spirals out to the ends of the head.
13 17 16 12
5
2
9
1 8
4
10 6
3
7
14 11
15
Retorque After 300 to 500 Miles If retorque-type head gaskets are used, retorque after 300 to 500 miles.
8
TORQ. HEAD BOLT SET SEQ. PART NUMBER
1st 15, 2nd 29, 3rd 37, PERFORM THE NEXT THREE STEPS ON EACH BOLT BEFORE MOVING TO NEXT BOLT IN SEQUENCE: 1) loosen 2-3 turns, 2) Long bolts 29-37; Short bolts 15-22, 3) turn 175-185 degrees 1st 15, 2nd 30, 3rd 37, PERFORM THE NEXT THREE STEPS ON EACH BOLT BEFORE MOVING TO NEXT BOLT IN SEQUENCE: 1) loosen 2-3 turns, 2) Long bolts 11-19; Short bolts 7-15, 3) turn 85-95 degrees 1st 15, 2nd 30, 3rd 37, PERFORM THE NEXT THREE STEPS ON EACH BOLT BEFORE MOVING TO NEXT BOLT IN SEQUENCE: 1) loosen 2-3 turns, 2) Long bolts 29-37; Short bolts 15-22, 3) turn 180 degrees 1st 15, 2nd 30, 3rd 37, PERFORM THE NEXT THREE STEPS ON EACH BOLT BEFORE MOVING TO NEXT BOLT IN SEQUENCE: 1) loosen 2-3 turns, 2) Long bolts 30-37; Short bolts 15-22, 3) turn 175-185 degrees 1st 15, 2nd 30, 3rd 37, PERFORM THE NEXT THREE STEPS ON EACH BOLT BEFORE MOVING TO NEXT BOLT IN SEQUENCE: 1) loosen 2-3 turns, 2) Long bolts 11-19; Short bolts 10-15, 3) turn 85-95 degrees 1st 37, 2nd 45, 3rd 52, 4th 59, PERFORM THE NEXT THREE STEPS ON EACH BOLT BEFORE MOVING TO NEXT BOLT IN SEQUENCE: 1) loosen 2-3 turns, 2) 11-18, 3) Long bolts turn 85-105 degrees; Short bolts turn 65-85 degrees Flanged Hex Head bolts: 1st 37, 2nd 45, 3rd 52, 4th 59, PERFORM THE NEXT THREE STEPS ON EACH BOLT BEFORE MOVING TO NEXT BOLT IN SEQUENCE: 1) loosen 2-3 turns, 2) 11-18, 3) Long bolts turn 85-105 degrees; Short bolts turn 65-85 degrees
94
ES 72156 ES 72160
94
ES 72131
94
ES 72160
94
ES 72156 ES 72160
94
ES 72131
94
ES 72131
82
ES 72129 ES 72131
9
FEL-PRO® T-T-Y HEAD BOLTS
FEL-PRO® Engine$aver® hardware
Understanding Torque-to-Yield Head Bolts Although Torque-to-Yield (T-T-Y) head bolts are becoming more common, some people still don’t fully understand how they work. Bolts on T-T-Y applications are tightened to their yield point, creating a more even clamping force over the entire area of the gasket. During engine assembly at the factory, precision machines tighten the bolts so they are just in the “yield zone.” Technicians making repairs in the field do not have access to this type of equipment. Engineers have found that by tightening head bolts to specified torque and then tightening them an additional partial turn, technicians can reach the yield zone. Fel-Pro® engineers suggest technicians use a gauge such as the inexpensive Fel-Pro® Torque-to-Angle Indicator (part number TRQ-1). It fits easily on the 1/2” drive of a torque wrench and eliminates uncertainty about the additional torquing required for T-T-Y head bolts.
NOTE: There is no way to visually tell if a bolt is the Torque-to-Yield design – the only way to tell is by its torque specifications.
Are T-T-Y Head Bolts Reusable? The torque-to-yield procedure stretches the bolts into their elastic range. On some engines, this stretching approaches the bolts’ elastic limit and the bolts are permanently stretched. If these bolts are removed and reused, it is likely that either the head gasket will fail due to false torque readings or that the bolts may break. Each engine manufacturer offers guidelines as to whether torque-to-yield head bolts are reusable. Some guidelines allow limited reuse, while others recommend you never reuse the bolts. Since technicians may not know how many times a T-T-Y bolt has been removed and reinstalled, we recommend never reusing a T-T-Y head bolt.
Parts to Help Reduce Repair Costs The FEL-PRO Engine$aver Hardware line is a collection of “problem solvers” that provide cost-saving alternatives to engine component replacement. They bring engine ­components back to proper performance, at a fraction of their replacement cost.
Engine$aver Hardware Is Cost Efficiency Without Compromise
Cylinder Head Bolts Help avoid the risks that go with reuse of head bolts on torque-to-yield applications.
Torque-to-Angle Indicator TRQ-1 Assures that proper installation procedures are followed when using torque-to-angle cylinder head bolts.
HeadSaver® Spacer Shims Compensates for excess metal removed during machining operations, so you don’t have to replace costly cylinder heads.
Cylinder Head Dowel Pins Assure proper gasket and casting alignment for an accurate seal and correct head-toblock assembly.
10
11
Torque Tables™
FEL-PRO® Engine$aver® hardware Valve Cover Load Spreaders
™
Evenly distribute the clamping force on the valve cover flange and allow a proper seal between the valve cover and the new ­gasket.
ENGINE
YEARS
FT.-LBS.
TORQ. HEAD BOLT SET SEQ. PART NUMBER
AC COBRA V8 260 Ford 289 Ford 427 Ford 428 Ford
1964-62 1968-63 1967-64 1968-66
● ● ● ●
65-70 65-70 100-105 80-90
70 70 70 70
1989-86 1993-92 2001-94
●
1st 22, 2nd 48 1st 22, 2nd 61 1st 22, 2nd 63
106 127 127
2001-94 1993-92 1991-90 2006-02
● ● ●
ACURA 4 Oil Pan SnapUps™ Save time and prevent frustration by holding the pan and the gasket in place for quick convenient bolt installation. ES 72863 for 5/16' applications ES 72864 for 6mm applications ES 72865 for 8mm applications
1590cc DOHC (D16A1) 16 Valve 1678cc DOHC (B17A1) 16 Valve 1797cc DOHC (B18C1, B18C5) 16 Valve 1834cc DOHC (B18B1) 16 Valve 1834cc DOHC (B18A1) 16 Valve 1834cc DOHC (B18A1) 16 Valve 1998cc DOHC (K20A2, K20A3, K20Z1) 16 Valve
2156cc SOHC (F22B1) 16 Valve 1997 2254cc SOHC (F23A4) 16 Valve 2000-98 2301cc DOHC Turbo (K23A1) 16 Valve
Sleeve ’N’ Seal® Repairs worn sealing surfaces and helps avoid replacement of costly harmonic balancers.
2008-07
2354cc DOHC (K24A2) 16 Valve 2008-04
●
1st 22, 2nd 63 1st 22, 2nd 63 1st 22, 2nd 61 1st 29, 2nd turn 90 degrees, 3rd turn 90 degrees NOTE: New bolts turn additional 90 degrees 1st 29, 2nd 51, 3rd 72.3 ● 1st 22, 2nd turn 90 degrees, ● 3rd turn 90 degrees NOTE: New bolts turn additional 90 degrees 1st 29, 2nd turn 90 degrees, 3rd turn 90 degrees NOTE: New bolts turn additional 90 degrees 1st 29, 2nd turn 90 degrees, 3rd turn 90 degrees NOTE: New bolts turn additional 90 degrees
128 106 106 106 108 108 106 106
ACURA 5 2451cc SOHC (G25A4) 20 Valve 1998-95 2451cc SOHC (G25A1) 20 Valve 1994-92
1st 29, 2nd 51, 3rd 72.3 72 in three steps
129 78
1st 29, 2nd 56 1st 29, 2nd 56 Automatic trans. 56 in three steps; Manual trans. 71 in three steps 1st 29, 2nd 51, 3rd 72.3 M11 bolts 1-8 47; M8 bolts 9-11 15
89 107 130
ACURA V6
Exhaust Flange Bolt & Spring Kits Quickly connect the exhaust manifold and exhaust pipe on FWD vehicles and assure correct clamping force.
Crankshaft Repair Sleeves Repair worn sealing surfaces without costly crankshaft replacement.
Engine$aver Hardware line products also appear in the FEL-PRO® Passenger Car/Light Truck and Heavy Duty master catalogs. 12
2494cc SOHC (C25A1) 24 Valve 1987-86 2675cc SOHC (C27A1) 24 Valve 1990-87 2977cc DOHC (C30A1) 24 Valve 2005-91
● ●
2997cc SOHC (J30A1) 24 Valve 2000-97 3165cc SOHC (6VD1) 24 Valve 1997-96 Isuzu 3179cc DOHC (C32B1) 24 Valve 2005-97
● ●
3206cc SOHC (C32A6) 24 Valve 1998-96 3206cc SOHC (C32A1) 24 Valve 1995-91 3210cc SOHC (J32A3) 24 Valve 2008-04
● ● ●
3210cc SOHC (J32A3) 24 Valve 2008-04
●
3210cc SOHC (J32A1, J32A2) 24 Valve 3471cc SOHC (J35A5, J35A8) 24 Valve
2003-99
●
2008-04
131 6 point bolts 1st 29, 2nd 29 again, 3rd 51, 4th 51 again, 5th 72.3, 6th 72.3 again ● 12 point bolts 1st 22, 2nd turn 90 degrees, 131 3rd turn 90 degrees NOTE: New bolts turn additional 90 degrees 1st 29, 2nd 29 again, 3rd 51, 131 ● 4th 51 again, 5th 72.3, 6th 72.3 again
3471cc SOHC (J35A5, J35A8) 24 Valve
2008-04
3471cc SOHC (J35A3, J35A5) 24 Valve
2003-01
Automatic trans. 56 in three steps; Manual trans. 71 in three steps 56 in three steps 56 in three steps 6 point bolts 1st 29, 2nd 29 again, 3rd 51, 4th 51 again, 5th 72.3, 6th 72.3 again 12 point bolts 1st 22, 2nd turn 90 degrees, 3rd turn 90 degrees NOTE: New bolts turn additional 90 degrees 1st 29, 2nd 51, 3rd 72.3
131 132 130 130 130 131 131 131
●
● PermaTorque® Head Gasket available
❍ Head Bolt Set available
